Naviate Geotech

Naviate Geotech is an addon to Civil 3D to import, present and analyse Geotechnical data from Field Manager or from CSV files. Naviate Geotech can then visualise the data in 3D or in plan and profile. The solution will be available in Sweden and Norway with the first release.

Preview release news Sign up for release FAQ

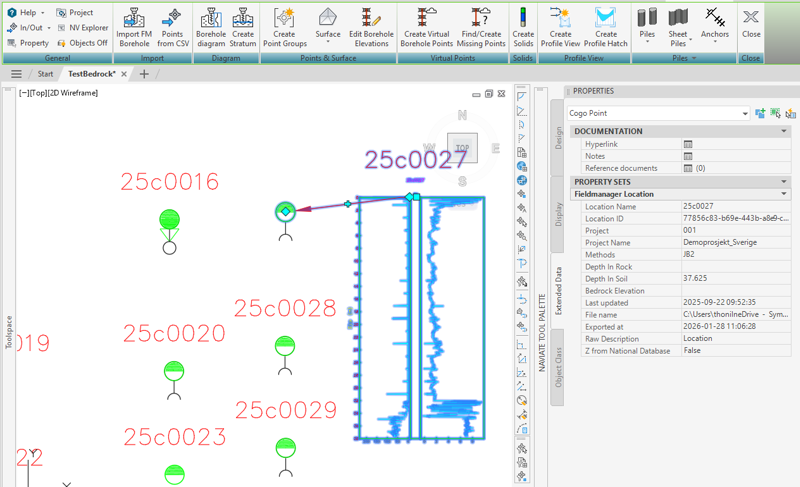

Geotech data directly to Civil 3D with Naviate Geotech

The data from Field Manager is presented as section diagrams, Civil 3D Cogo points and Property Set Data on Cogo Points. This can then be used to create stratum, solids and profile diagrams with hatching. There is also methods for adding virtual boreholes and editing boreholes to make sure that the data is presentable.


                                 Geotechnical ground survey data

                                 First release available for Sweden and Norway

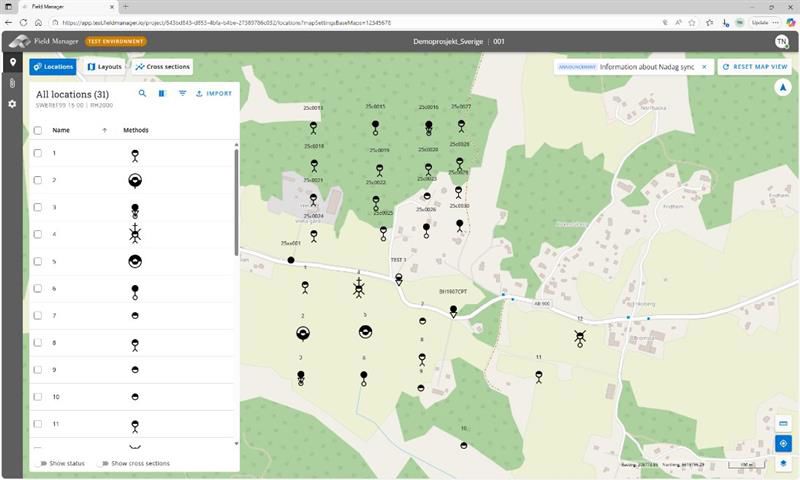

What is Field Manager?

Field Manager is developed by NGI Digital, the Norwegian Geotechnical Institute’s digital innovation department. It is an open and cloud-based platform for geotechnical ground survey data. Field Manager support the planning, collection, processing, storage, quality assurance and availability of your valuable geotechnical data.


                                 Norwegian Geotechnical Institute

                                 Geotechnical ground survey data

What is Naviate and Field Manager?

Naviate can communication with Field Manager from within the Civil 3D environment and download data from your projects within Field Manager with the click of a button. Naviate Geotech works with Civil 3Ds template which gives the user all the flexibility with Styles that Civil 3D gives.


                                 Download data from your projects

                                 Civil 3Ds templates

Receive data

Section diagrams
Civil 3D COGO points
Property Set Data on COGO points

Create your output

Stratum
Solids
Profile Diagrams with hatching

Add Virtual data

Add boreholes
Edit boreholes

Be the first to learn more when we launch first version

FAQ

Field Manager is developed by NGI Digital, the Norwegian Geotechnical Institute’s digital innovation department.

Right now we only have a release preview available. You can contact us on this email if you would like to test it out. Once we go live with the first full release, you can download a trial. Want to be informed once that is available? Register in the interest form on this page.

The first version will only support the Swedish and Norwegian market.
