Naviate for Civil 3D General 2022.1 Release

Updates in Naviate for Civil 3D General. News and improvements include; Extract 3D Faces from object, Set Selection Set and Use Selection Set, Property Palette and Create ADMM Property Set.



Naviate for Civil 3D General 2022.1 Release

Changes are available in 2022.1

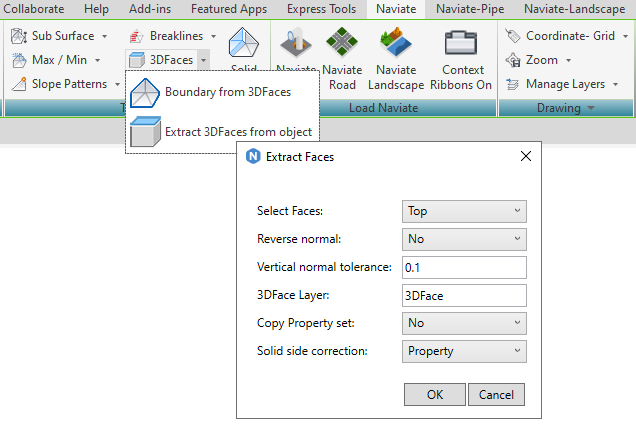

Extract 3D Faces from object

The command extracts 3DFaces from Slabs, Solids and Meshes, and can select what side of the object to extract from.

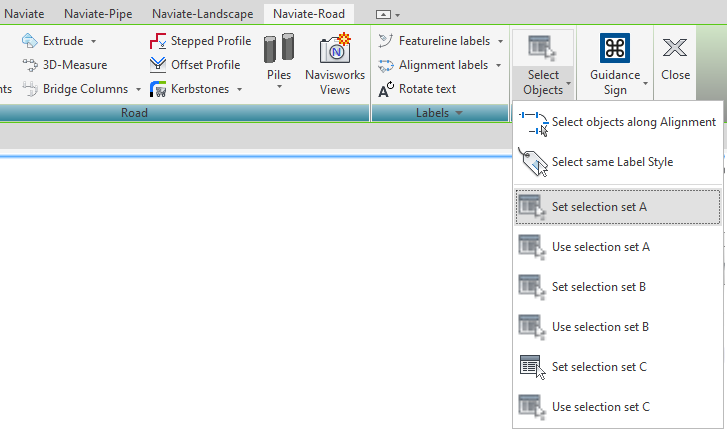

Set Selection Set and Use Selection Set

Under Select Objects on Road and Landscape-tab are functions to set and use selection sets.

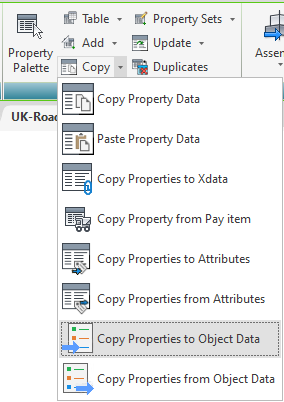

Property Data To and From Object Data

Creates object data sets on objects from a Property set, and can update a property set from object data.

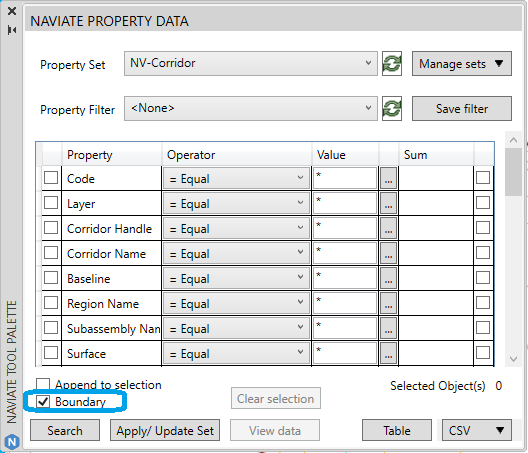

Property Palette

Added option for geographical search

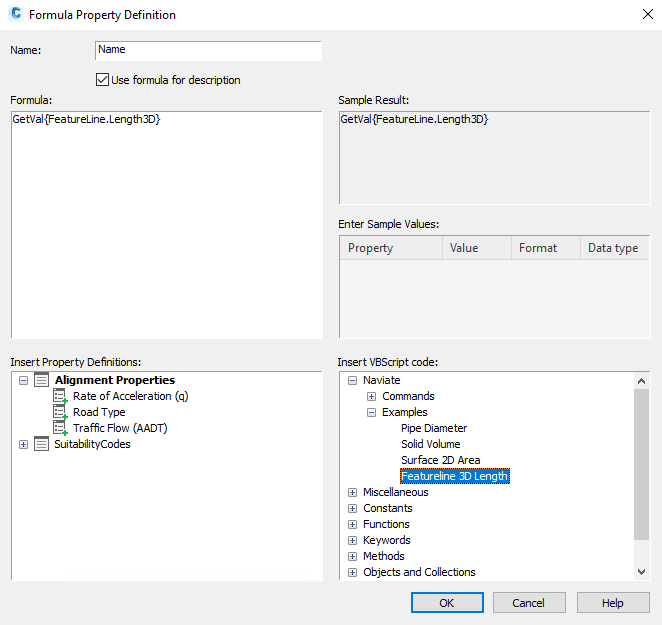

VBScript Help-file

Added Naviate-examples to the help-file for Property Set Formulas.

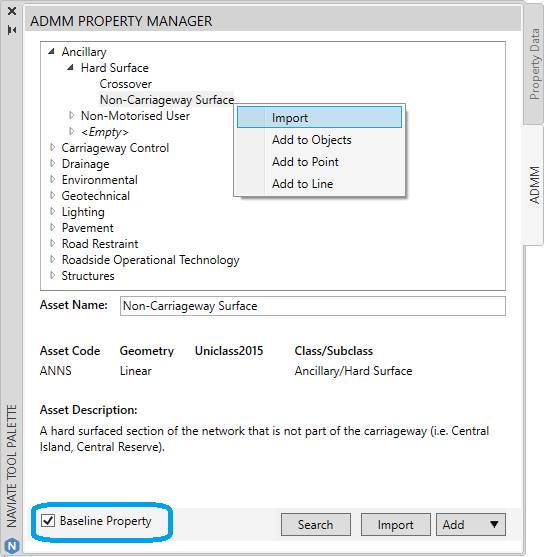

Create ADMM Property set

Added dialog box to the command and changed the command name.

Raise Polyline

Fixed an issue where calculation didn't work correctly



You can find the related release notes here
