Naviate Rebar Extension Features

Automate the process of generating reinforcement for elements like beams, columns and piles.

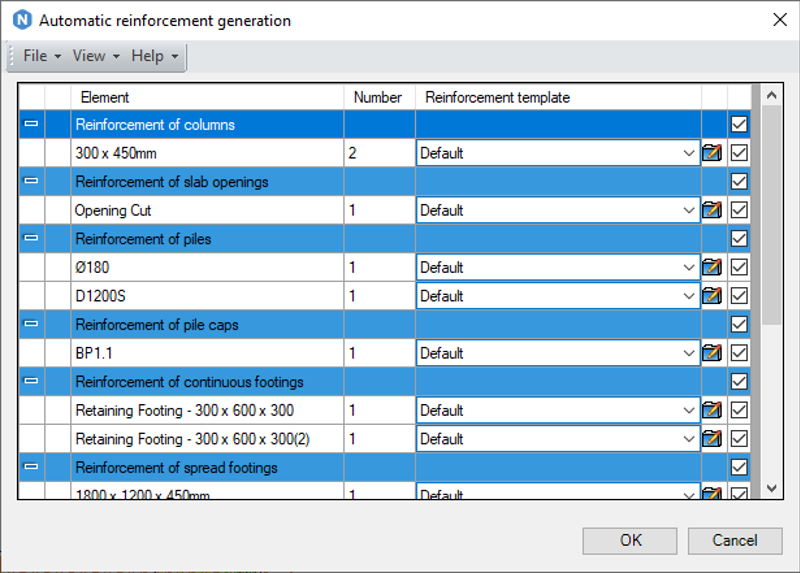

Automatic reinforcement generation

Perform an automatic process of generating reinforcement for elements as beams, columns, piles.

Beams

Generate reinforcement for a rectangular cross-section of a beam in an Revit and Robot.

Columns

Generate reinforcement for rectangular and round cross-sections of an RC column in an Revit and Robot.

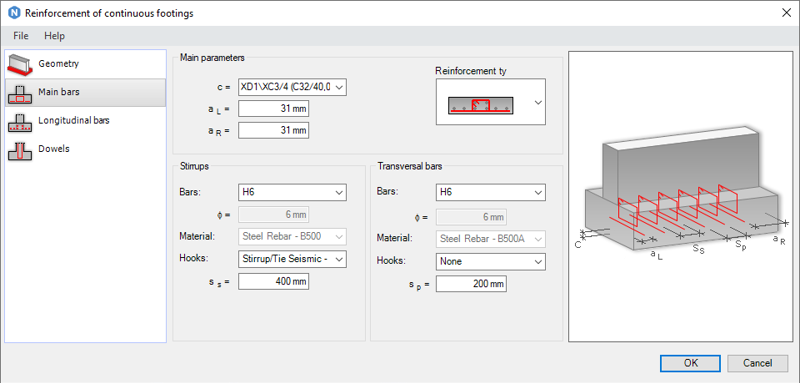

Continuous Footings

Generate reinforcement for a continuous footing in a Revit model. Reinforcement can be generated for the following types of footing cross-sections: Rectangular and Trapezoidal.

Parapets

Generate reinforcement of a parapet defined in a Revit model.

Pile caps

Generate reinforcement for a pile cap in a Revit model. It is possible to generate reinforcement for rectangular and triangular sections of a pile cap.

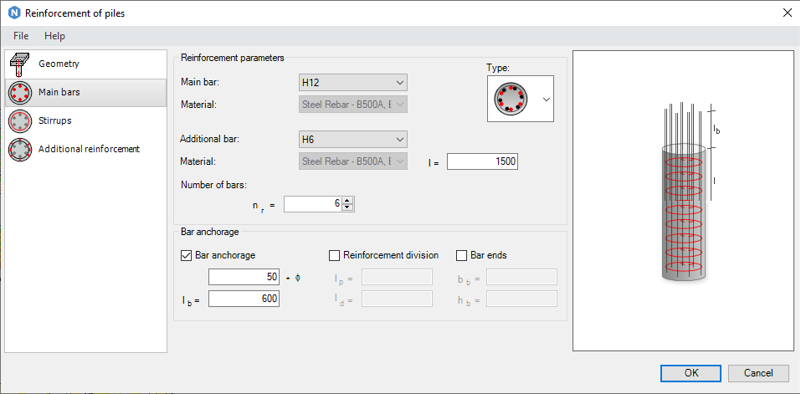

Piles

Generate reinforcement of a pile defined in a Revit model. You can generate reinforcement for a single pile or a group of piles positioned under the pile cap.

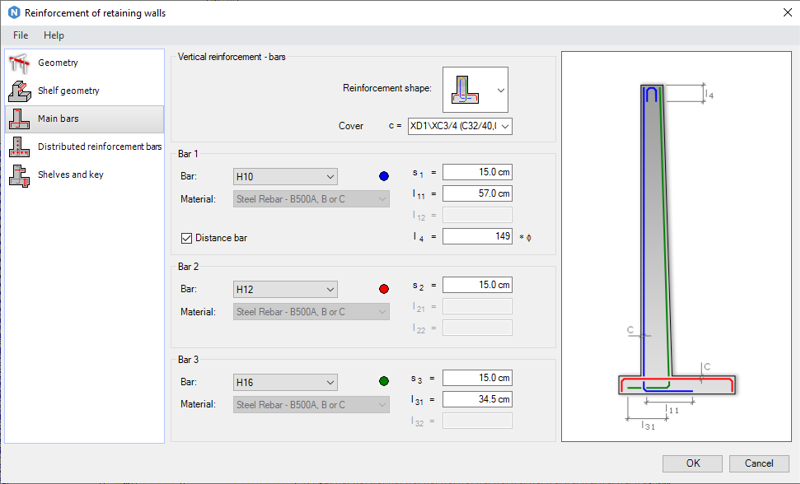

Retaining walls

Generate reinforcement for a retaining wall in a Revit model. Reinforcement can be generated for the following types of objects in Revit: Structure foundations in the shape of a typical retaining wall and foundations under walls of different shapes combining wall and foundation.

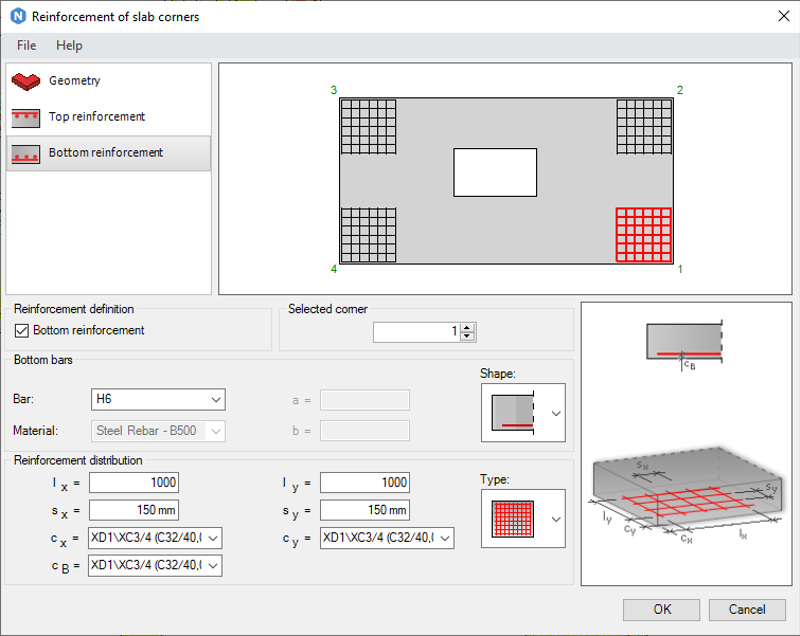

Slab corners

Generate reinforcement for corners of slabs in a Revit model.

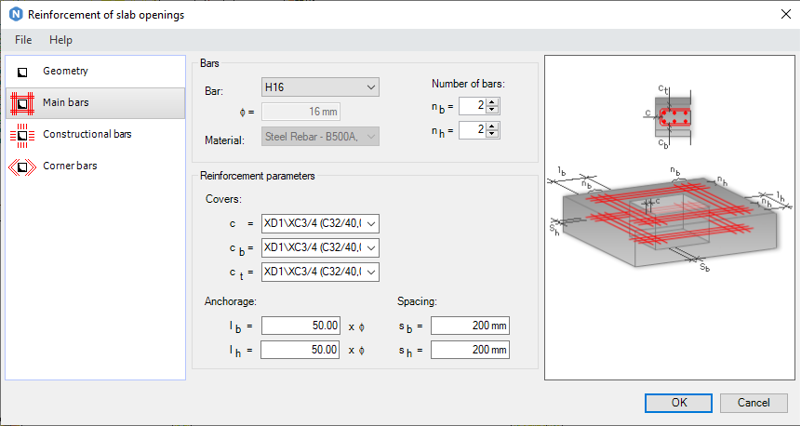

Slab openings

Generate reinforcement of slab openings in a Revit model. Reinforcement can be generated for the following types of slab openings: rectangular openings, rectangular openings adjacent to one slab edge, rectangular openings adjacent to two slab edges and round openings.

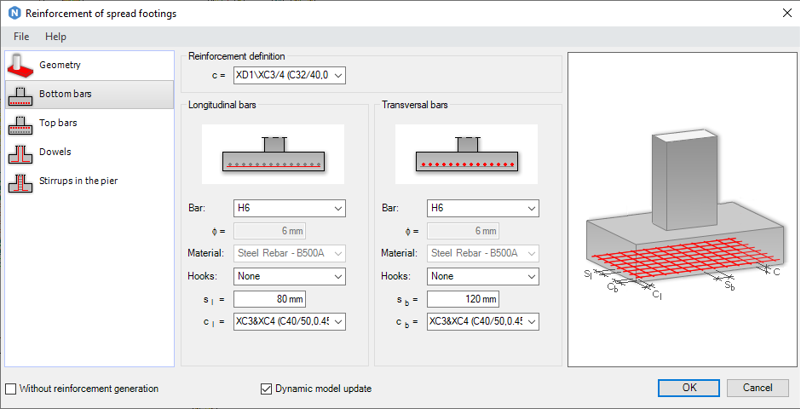

Spread footings

Generate reinforcement of a spread footing in an Revit and Robot. Reinforcement can be generated for the following types of footing cross-sections: Spread footing and adjoining column.

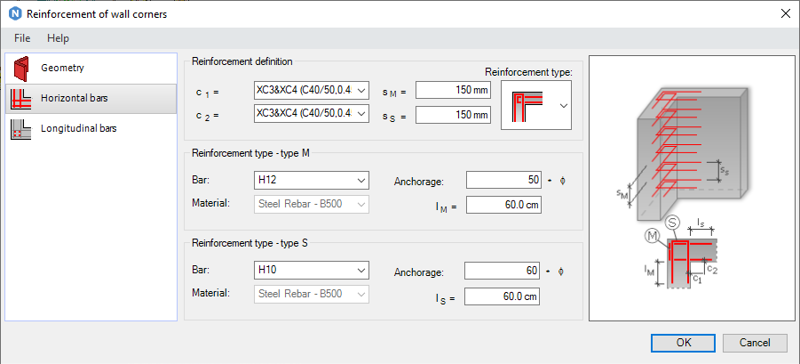

Walls corners

Generate reinforcement of corners of walls defined in a Revit model. You can generate reinforcement for the following types of wall corners: Wall corners, Connection of walls and Intersection of two walls.

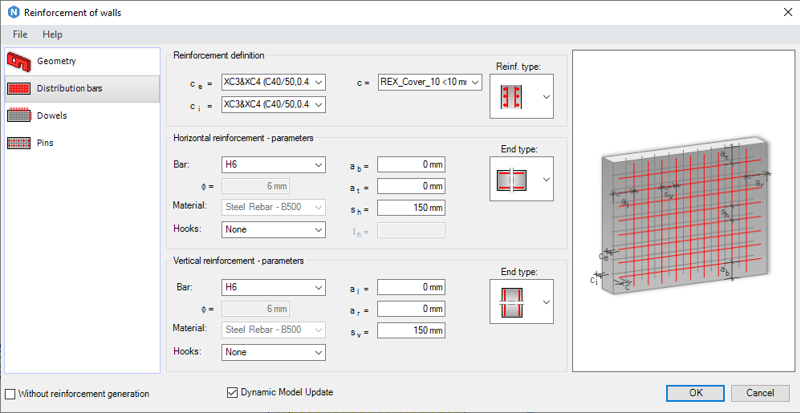

Walls

Generate reinforcement of an wall in a Revit model.

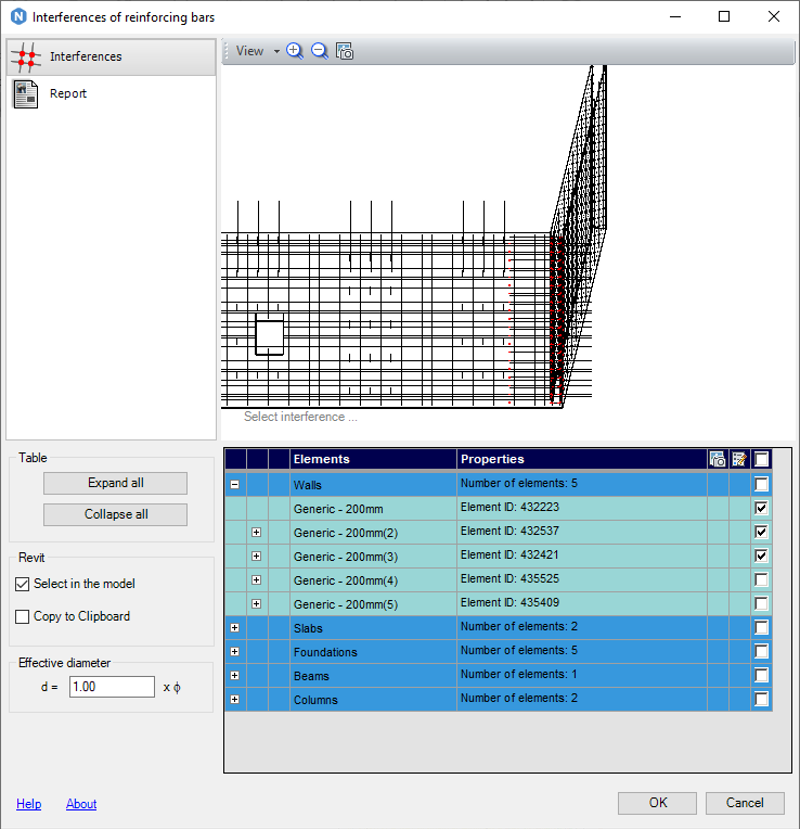

Interference of reinforcing bars

Perform an analysis of rebar interference existing in structure model of the Revit program. The module allows to analyse selected elements in structure model. If the elements have not been selected in structure model before the module activation, the analysis is carried out for the entire structure model.
