Changes is available in version 2022.1.4

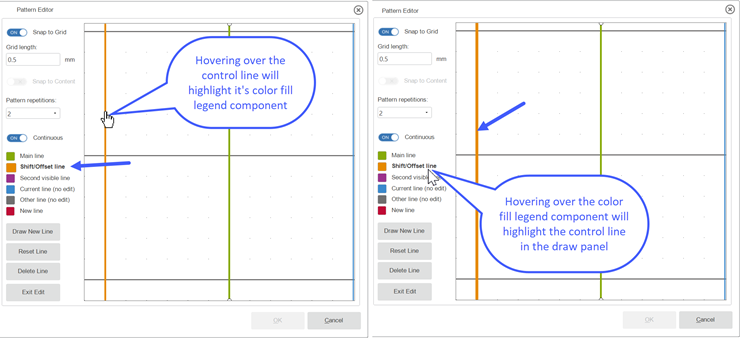

Pattern Editor

Improved experience when modifying pattern lines.

We have made it easier to find the pattern line you want to edit by highlighting the line when hovering over an item in the color legend and vice versa.

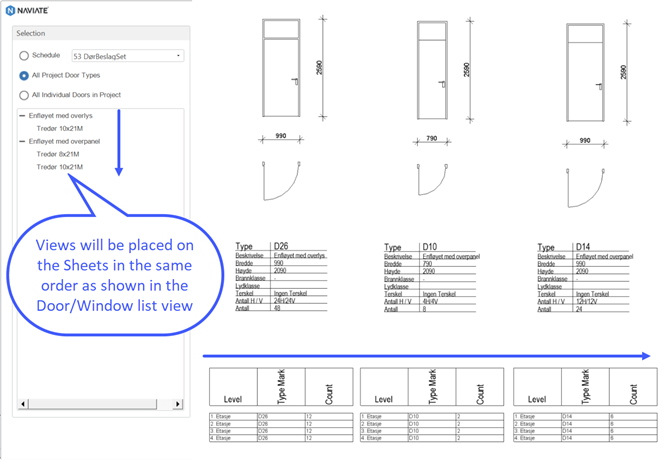

Door and Window Drawings

Views are placed on the Sheets in same order as specified in the user interface.

Now the feature will order the Door/Window types on the sheet based on the order in the list view. This will enable you to order the views on the sheets in an alphabetical order.

You will also be able to group and sort the Doors/Windows in the schedule and use the same order as specified in the schedule when placing views on sheets.

Fixes

• Door/Window Drawings NX: Fixed issue when selecting view types with applied view template
• Roof Slope Arrow: Fixed issue when changing slope arrow elevation type
• Orientation: Fixed issue when updating orientation parameter
• Reference Views from 3D Zones: Fixed issue when filtering 3D Zones
• Update Doors/Windows: Fixed issue when running the tool in detached projects
