Changes is available in version 2022.1.4

New! PartMaker

Create or edit your own HVAC parts with Sound and Pressure loss data.

Naviate HVAC & Plumbing includes a database with different catalogues containing parts that has data for performing a Sound and Pressure loss calculation. PartMaker allow you create your own catalogues and add or change parts to be able to calculate Sound and Pressure loss using your custom parts.

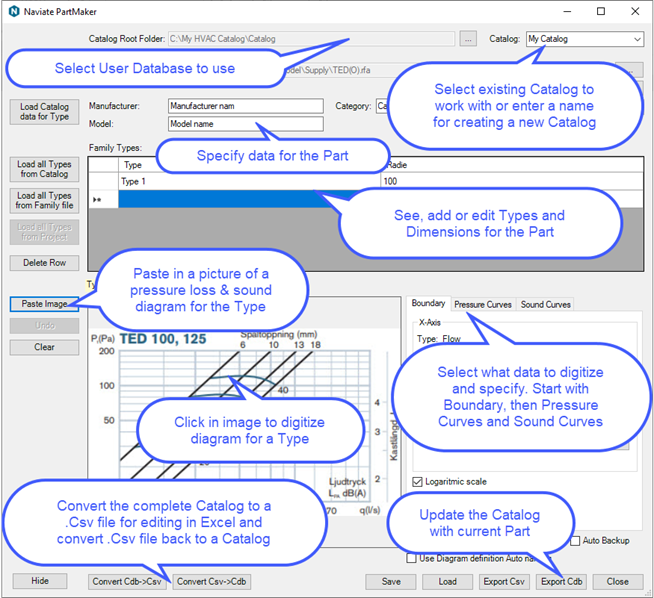

PartMaker have both functionality for adding new Parts and specifying Sound and Pressure loss data for each type as well as the ability to convert Catalogues to/from .csv files for editing Parts and Types in Excel.

Note! Avoid adding or changing Parts to the Catalogues in the database installed by Naviate HVAC. Create a User Database first by either copying the installed database or creating a similar folder structure at any location on your hard drive or a server. Read more in Help (in the Naviate menu) about how to do this.

Sound and Pressure loss calculation

Improvements for using Systemair Tube F parts in duct system.

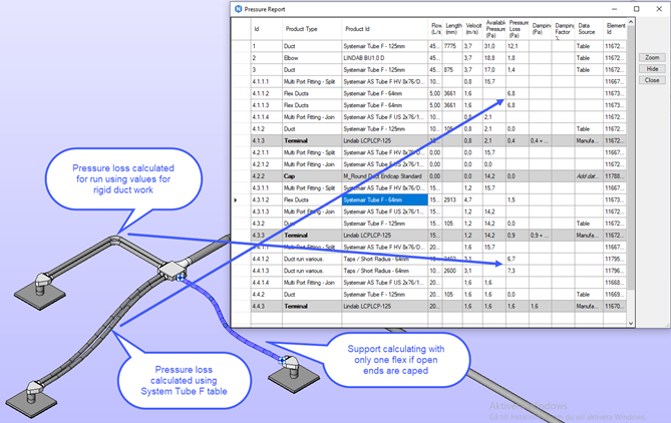

Now you can use split and join part also with only one run if you cap the open ends. Pressure losses are now calculated using Tube F pressure loss diagram if you draw a flex duct or using normal losses for duct and fittings if you draw rigid duct work.
