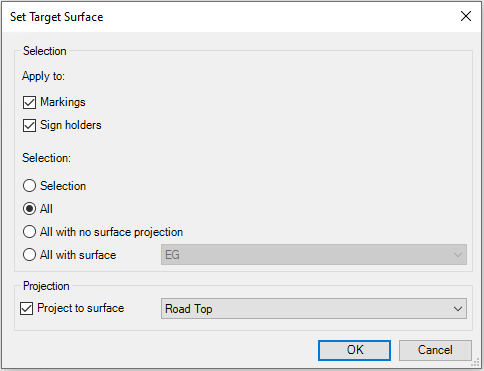

Set Surface (NVSetTrafficSurface)

Sets or changes projection surface for selected or all signs and markings in the drawing.

Copy Sign (NVCopyExistingSignHolder)

Copies an existing sign holder with signs to a new location.

Update Direction Sign (NVDirectionSignUpdate)

This command updates Direction signs that are used on a Sign Holder to the updated version done with Direction Sign.

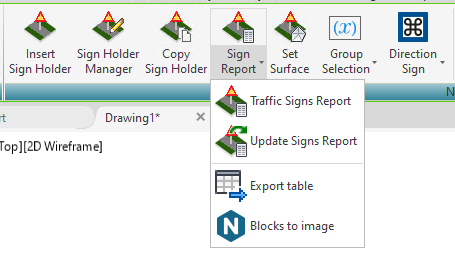

Blocks to Image (NVBlockstoImage)

A new command that exports single blocks or blocks inside a table to image-files.

Traffic Sign Report (NVTrafficSignReport)

The blocks used in the table is now a larger default size, the default size can also be edited in the column editor. The column editor can also rename and remove columns.

Can now read all SignHolderAttributes and SignAttributes

Area Markings (NVAreaMarking)

The command can now create area markings with a selected polyline or arc as a direction line. A new setting has been added to measure the Gap between segment starts aligned to the direction line and it also.

• Fixed an issue where Area Markings didn’t respect the common Projection Surface setting.
• Fixed an issue where meshes where created even if 3D was not ticked.
• Fixed an issue where the markings didn’t project on a Dreffed Surface.

Direction Sign

Fixed an issue where some lines where placed on Layer 0.

Cross Markings (NVCrossMarking)

• Fixed an issue where Cross Markings didn’t respect the common Projection Surface setting.
• Fixed an issue where meshes where created even if 3D was not ticked.
• Fixed an issue where the markings didn’t project on a Dreffed Surface.
• Fixed an issue where the surface dropdown became empty when changing templates.

Line Markings (NVLinemarkings)

• Fixed an issue where the markings interval failed on straight non-horizontal lines with multiple nodes.
• Fixed an issue where the markings didn’t project on a Dreffed Surface.

Lane Markings (NVLaneMarkings)

• Fixed an issue where the command didn’t read the description from the block-dwgs.
• Fixed an issue where the markings didn’t project on a Dreffed Surface.

Sign Holder Manager (NVSignHolderManager)

Fixed an issue where the sign height and width was multiplied with the section scale.

Insert Sign Holder (NVInsertSignHolder)

• Sets a default name when empty and can accept only Next Counter
• Now always scales both sign and attributes the same as the sign.
• Stores the size value for next time.

NVMarkingsReport

Now calculates amount of area and crossmarkings correctly

The user can now rename, sort and remove columns in the Colum Editor

SignHolderAttributes and SignAttributes

These have been significantly expanded

SignHolder Rotate

If a signholder is rotated manually, that is respected and stored and the sign rotates along with the sign holder.
