Naviate for Civil 3D General Functions 2021.3 Release

News and improvements include; Change Assembly Path, Update Properties, Union Solid by Nudge and more.

Naviate for Civil 3D General Functions 2021.3 Release

Naviate General

Changes are available in 2021.3, 2020.13 and 2019.23.

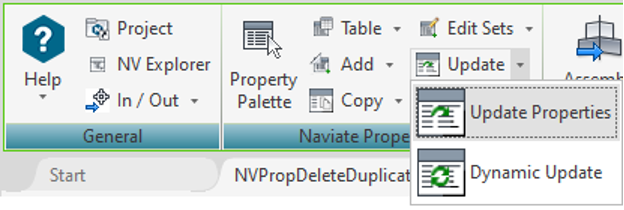

Update Properties

Updates Naviate Property formula calculations in all property sets on selected objects.
Update properties

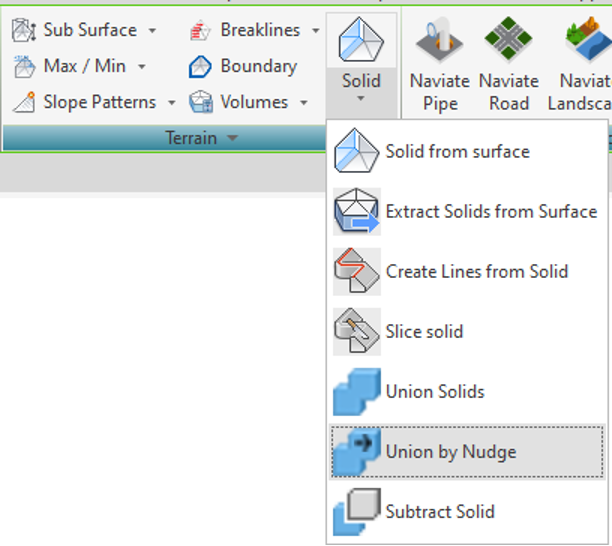

Nudge Solid

Unions two solids, but if Naviate (AutoCAD) fails to union them, Naviate nudges (moves) the second solid in selected direction, by an entered Nudging value, eventually several times, until Naviate succeeds to union them. The Nudging Factor is used to multiply the Nudging Distance every time Naviate fails to union.

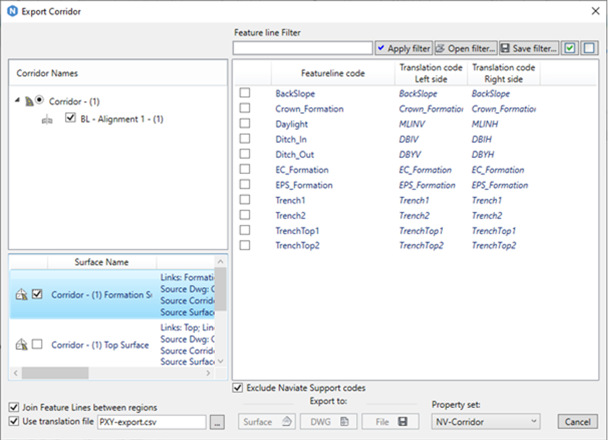

Export Corridor (NVCorPXY)

Changed the placement for the translation file to make it more user friendly. Added NaviateExcludeCodes.txt to be able to exclude codes to export.
Export corridor

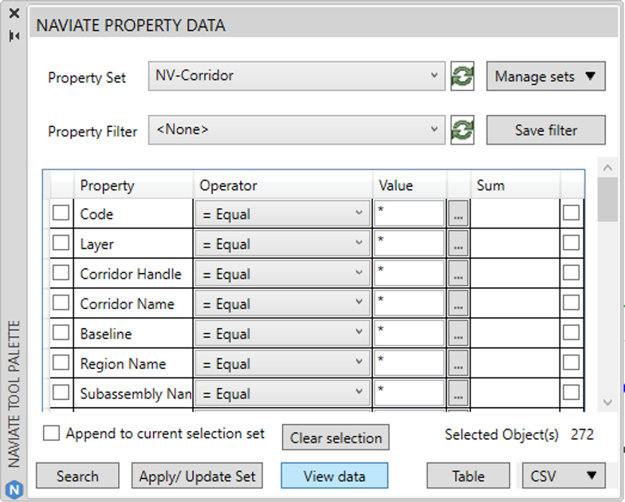

Select objects with property

Select objects with property: added a button to View Data which opens Naviate Property.

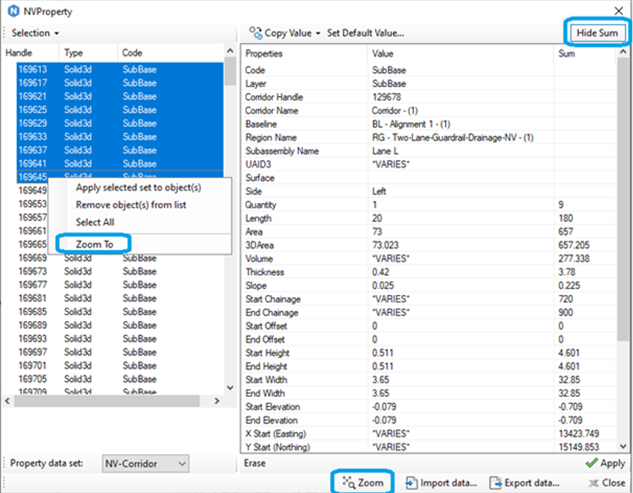

Naviate Property

Naviate Property: added Zoom To and Select to move and view the different objects while still in the dialog. Also added possibility to search for 0 to find objects without added information in a property.

Match Properties

Updated and cleaned up the dialog box

Union Solid

Now filters out 0-solids and can now handle any property sets.

Paste Properties

Added Property Filter option.

Copy Properties

Added error messages on the commandline.

Verify Assembly

Now refers to Change Assembly Path as a solution for Assemblies with faulty search paths.

Export to CSV

If appending or overwriting an existing CSV-file, the command now checks that the columns about to be exported, match the columns in the file and warns if not.
