Changes are available in 2023.2 and 2021.22

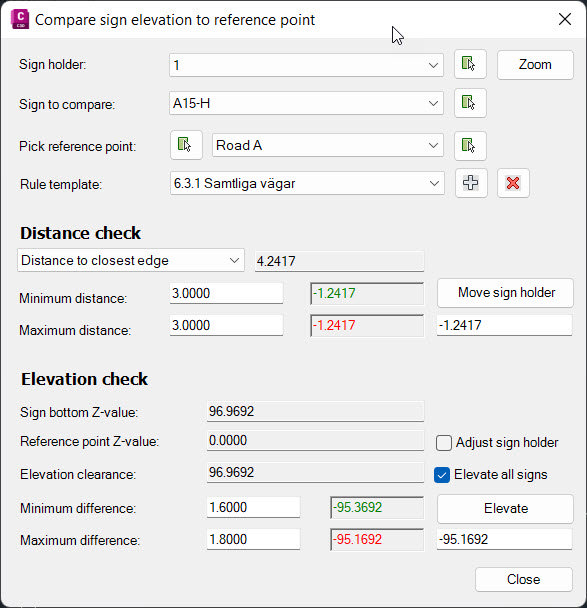

New feature. Sign Elevation Check

A new feature that can evaluate distance and elevation for signs on a sign holder in relation to set values or a selected Rule-file. The feature can then move the sign holder in horizontal and the sign in elevation to fulfill the rules.

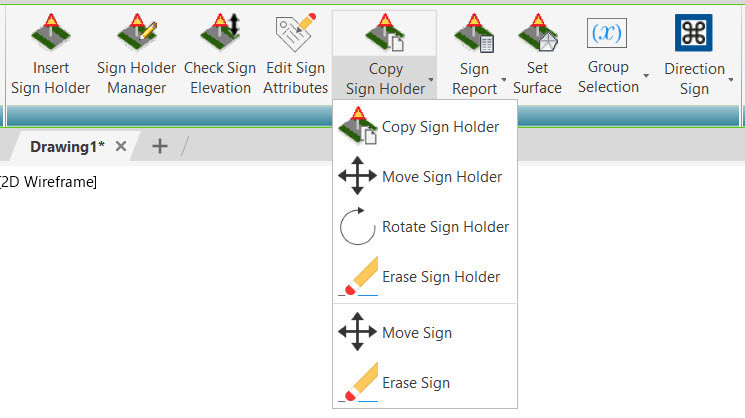

New commands. Move Sign, Move Sign Holder, Erase Sign Holder, Edit Sign Attributes

Move Sign, Move Sign Holder, Erase Sign, Erase Sign Holder and Edit Sign Attributes added as commands on the Ribbon.

Sign Holder

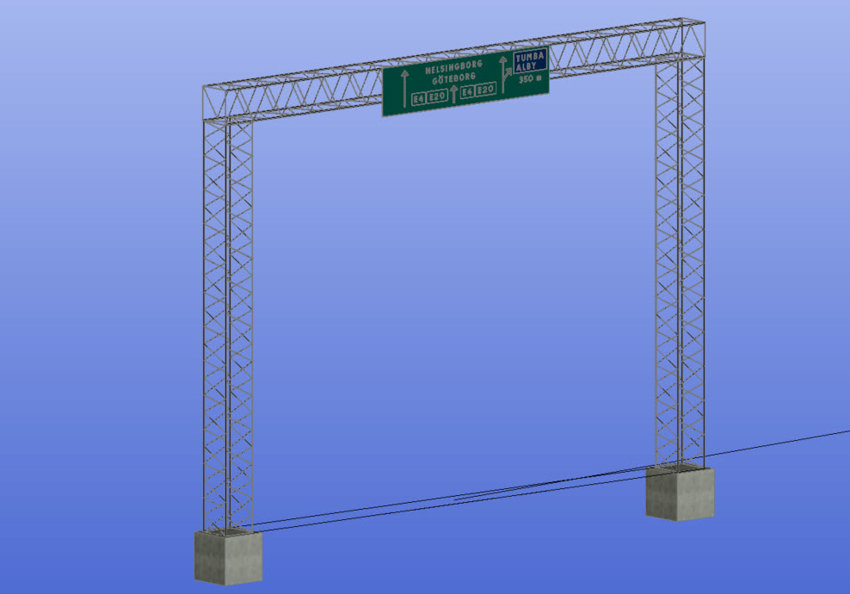

3D portal

A portal can now be built from a 3D-block that is arrayed to match the set elevation of the portal. This can for instance be used to create a truss portal.

Beam only

This can be used to create a combination of portal legs and beam.

Section block for the Sign Holder can now adapt to the height of the sign holder.

If the sign selected is a 3D-block, then that block is rotated to be placed correctly in all views on the sign holder.

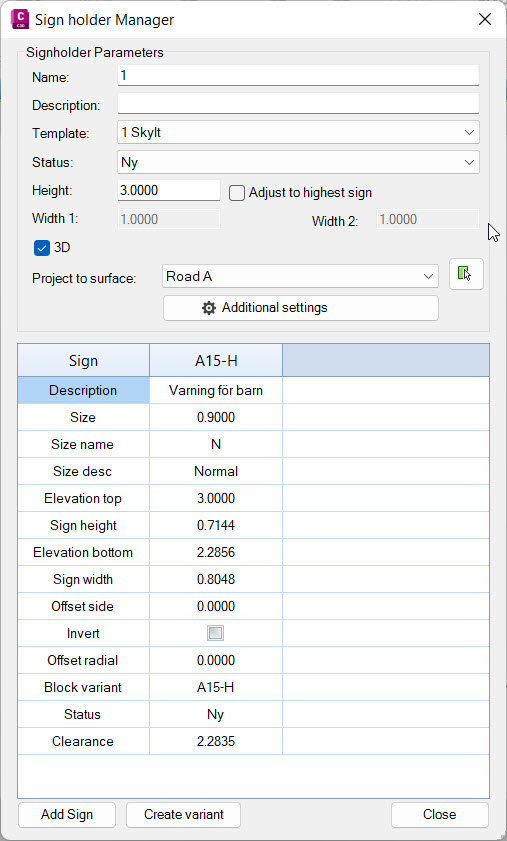

Sign Holder Manager

• Clearance can be seen for each Sign in the Sign Holder
• Height of the Sign Holder can be set to Highest Sign

Markings Labels

Can now use Formulas

• The Add label command has a new command order for placing the label that is more logical.
• Sign Status is added, usesthe same status as the Sign Holder. This value can be added as auto-content to the sign attribute and to the table.
• Swedish Naviate: Tratex fonts are now installed with Naviate.

Fixes

• Signs can now support existing attributes
• Traffic sign Report now has a sorting option.
• Signs can now display Text and Mtext from a sign in 3D
• Fixed an issue where Line Markings sometimes switches the values for Gap and Length
• Fixed an issue where Area Markings Hatches took the wrong layer
• Fixed an issue where Line Markings didn’t work on 2D Polylines
