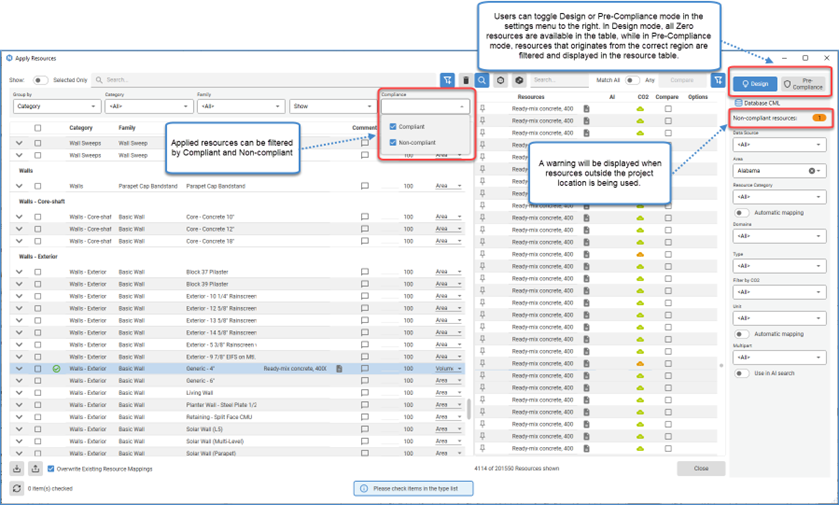

Design and Pre-Compliance

Users can now work in Design or Pre-Compliance mode, helping them find more relevant material data for different stages of a project.

Users can now:

• Quickly filter out available resources from their project region.
• A warning is displayed with the number of non-compliant resources that have been applied.
• All applied resources can be filtered by their compliant or non-compliant status.

Export Thickness to OCL

Material thickness is now included in the export to OCL when exporting System Families. In previous versions of Naviate Zero, a default OCL value was assigned, requiring users to manually edit these values in OCL after export.

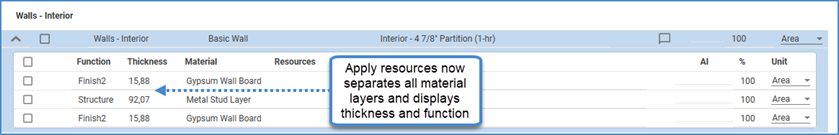

Apply Resources - Material Update

Apply Resources has been updated to display all material layers of System Families individually. Previously, layers composed of the same material were grouped together. With this enhancement, users can now also view the function and thickness of each layer when applying resources. This change does not affect Loadable Families.

Naviate Assistant

The Naviate Assistant is now accessible outside of the Compare Tool. It can be launched directly from the Resource Table or the Revit Family Table where resources have been applied. This improvement eliminates the previous limitation of requiring a resource comparison in order to access the Naviate Assistant, streamlining the user workflow.

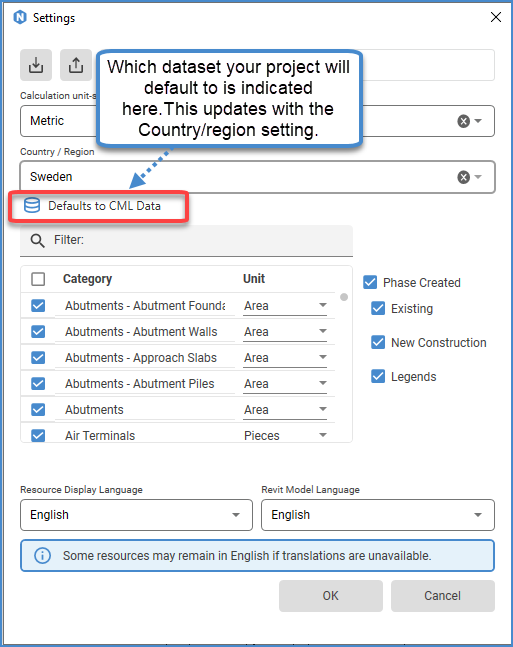

Settings

Projects now automatically defaults to TRACI or CML data sets, depending on the project location. This will affect the filtering of resources inside of Apply resources.

Licensing - Login

Login after start of Revit or after you have logged out.

You no longer must restart Revit to login again. We have added a Login option in Help ribbon to allow you to login after you started Revit/Naviate or after you have logged out from Naviate.

If you skipped login at startup, or was off-line, you might have to click on Release and Refresh tool (see below) to obtain a license after you have logged in.

Note! You cannot logout and login with another account; you can only login using same email address that was used at startup of Revit/Naviate.

Licensing - Release and Refresh

Release licenses or get access to Naviate without restarting Revit after long inactivity.

We have added a new tool in Help ribbon to release licenses and re-activate your licenses after a long period of inactivity. You no longer must restart Revit/Naviate after a long period of inactivity or sleep mode.

When clicking on Release and Refresh, any used license will be returned, and licensing system is re-initialized. You will be asked to login if needed.

About - User name

Logged in user email address is moved from the main ribbon to About drop-down to save space in the ribbon.

Fixes

• Apply Resources - Fixed issue with percentages being reset to 100 when applying resources.
• Apply Resources - Fixed apply resources data grid scaling wrong when resizing the window.
• Apply Resources - Fixed issue with icon sometimes being displayed even though no resource had been applied.
• Apply Resources - Fixed thickness not being converted properly on some machines, causing errors in calculations.
• Apply Resources - Fixed domains not being loaded properly.
• Apply Resources - Fixed apply resources showing resources with unsupported units.
• Apply Resources - Fixed translations always being loaded when apply resources are opened.
• Apply Resources - Fixed Apply resources not being able to open some older projects.
